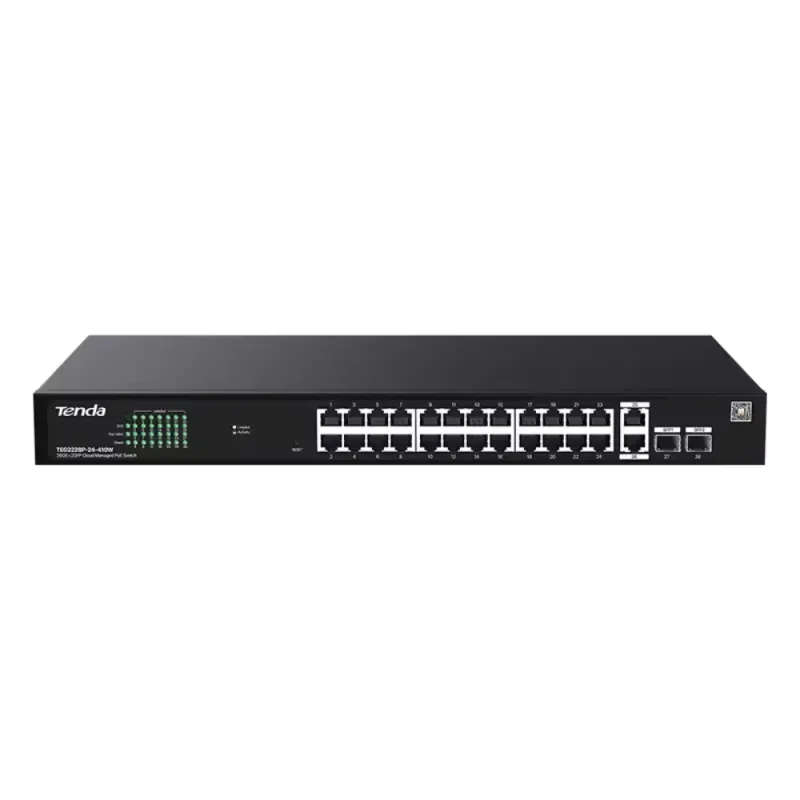

Tenda TEG2228P 24-Port Gigabit PoE+ Cloud Managed Switch, 2 SFP, 410W

Write the first reviewModel TEG2228P-24-410WSKU TENDA-TEG2228P24410W

৳23,000

EMI from ৳1,920/month on 12 months with partner bank cards

In stock — ready to ship

Key features

Model: TEG2228P-24-410W
Ports: 24 x gigabit PoE+, 2 x gigabit RJ45, 2 x 1000M SFP
PoE Budget: 410W max
Switching: 56Gbps capacity, 41.7Mpps
Management: CloudFi web and app
Features: VLAN, QoS, port mirroring, aggregation, loop protection
Form: 19-inch rack, 440 x 240 x 44 mm

DeliveryAll over Bangladesh · charge shown at checkout
1 year warrantyOfficial, claim online
Store pickupElephant Road, Dhaka

Specification

Ports

PoE Ports: 24 x 10/100/1000Mbps RJ45 (data and power)
Uplink RJ45: 2 x 10/100/1000Mbps RJ45 (data)
SFP Ports: 2 x 1000Base-X SFP

PoE

PoE Standards: IEEE 802.3af, IEEE 802.3at
Total PoE Budget: 410W

Switching

Switching Capacity: 56Gbps
Forwarding Rate: 41.7Mpps
MAC Address Table: 8K
Transmission Method: Store-and-forward

Management

Management: Cloud managed via CloudFi web and app

Features

Advanced Functions: Port isolation, port mirroring, link aggregation, QoS, DHCP snooping, loop protection, storm control

Standards

Network Standards: IEEE 802.3, 802.3u, 802.3ab, 802.3af, 802.3at, 802.3x, 802.3z, 802.1p, and more

Physical

LEDs: Link/Act per port, PWR, SYS
Dimensions: 440 x 240 x 44 mm (1U rack)

Environment

Operating Temperature: 0°C to 45°C

Warranty

Manufacturer Warranty: 1 year

Description

Tenda TEG2228P 24-Port Gigabit PoE+ Cloud Managed Switch

The Tenda TEG2228P PoE switch price in BD is shown on this page. Built for larger installations, the TEG2228P combines 24 gigabit PoE+ ports, four uplinks and cloud management in a single 1U rack switch, ideal for big CCTV systems, hotel and campus Wi-Fi, and office networks.

24 gigabit PoE+ ports, 410W budget

Every one of the 24 main ports runs at gigabit speed and supplies 802.3af/at PoE. With up to 410W of total PoE power, it can drive two dozen IP cameras, Wi-Fi 6 access points or IP phones from one box.

Four uplinks including SFP

2 x gigabit RJ45 uplink ports for NVRs, servers or routers
2 x 1000M SFP slots for fibre links between buildings or floors

Cloud management with CloudFi

Manage the switch from anywhere through Tenda's CloudFi web portal or mobile app: check port status and PoE usage, reboot a stuck camera remotely by cycling its PoE, and receive alerts. That saves site visits for installers managing many clients.

Professional features

The switch supports VLANs, QoS, port mirroring, link aggregation, DHCP snooping, port isolation, loop protection and storm control. Store-and-forward switching, 56Gbps capacity and a 41.7Mpps forwarding rate give non-blocking performance across all ports.

Rack-ready

The 440 x 240 x 44 mm 1U chassis fits a standard 19-inch rack. Per-port link LEDs plus power and system LEDs make troubleshooting easy. It operates from 0°C to 45°C.

Typical projects

Factories, warehouses, schools, hospitals, hotels and apartment complexes with 16–24 IP cameras or ceiling access points.

Buy from QASWATEC

QASWATEC sells genuine Tenda networking products with an invoice and a 1-year warranty. Our Elephant Road, Dhaka team can help plan PoE budgets and cabling. We deliver across Bangladesh.

Questions about this product

How many PoE ports does the Tenda TEG2228P have?

The Tenda TEG2228P has 24 gigabit PoE+ ports plus 2 gigabit RJ45 and 2 SFP uplinks.

What is the PoE budget of the Tenda TEG2228P?

The Tenda TEG2228P supplies up to 410W of PoE power.

How is the Tenda TEG2228P managed?

The Tenda TEG2228P is cloud managed through Tenda's CloudFi web portal and app.

Does the Tenda TEG2228P support VLAN?

Yes. It supports VLAN, QoS, port mirroring, link aggregation, DHCP snooping and loop protection.
