ZKTeco DM-280ZL Z and L Bracket for 280kg Electromagnetic Lock

ZKTeco DM-280ZL Z and L Bracket

See the ZKTeco DM-280ZL bracket price in BD on this page. An electromagnetic lock normally mounts on the frame of an outward-opening door. When the door opens inward, or the frame is too narrow, a Z and L bracket set repositions the lock and armature so they meet correctly when the door closes.

What is in the set

• Z bracket: 180 x 44.8 x 45.2 mm, holds the lock body

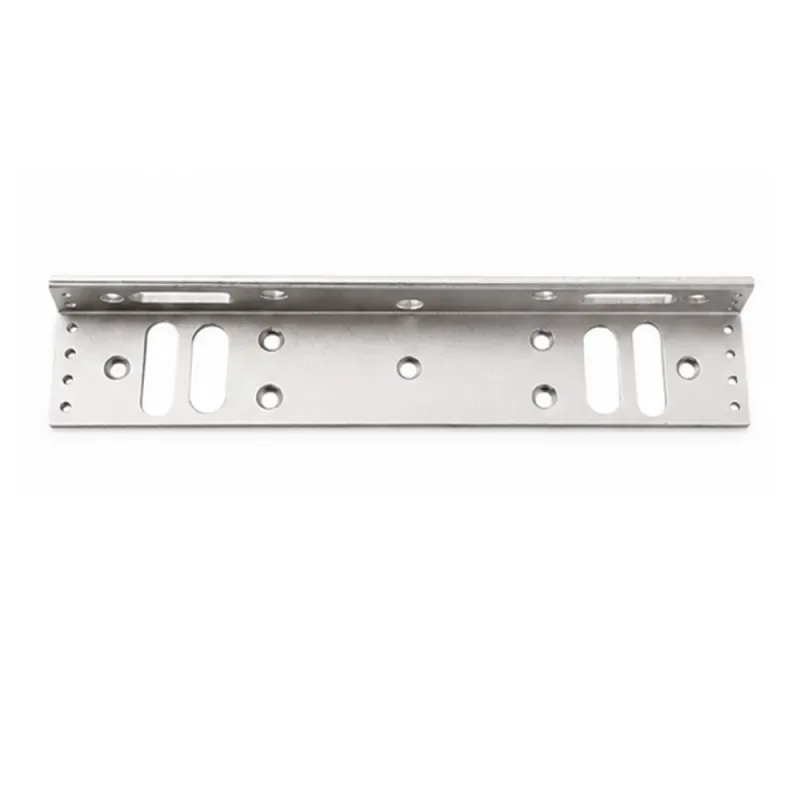

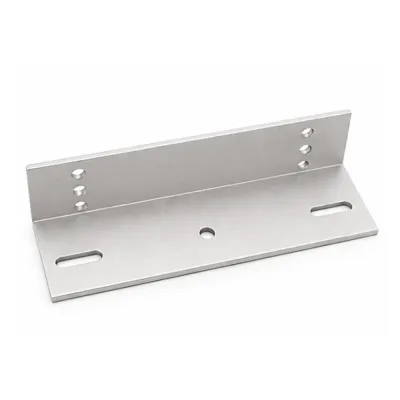

• L bracket: 250 x 48 x 28.5 mm, holds the armature plate

Key points

• Designed for 280kg-class EM locks
• Suitable for wooden, metal and fireproof doors
• Used for inward-opening doors and narrow frames

Where it is used

Office cabins, server rooms, store rooms, apartment entrances and any inward-swinging door where an access control lock is being added.

Typical access system

1. EM lock fixed to the Z bracket on the frame.
2. Armature plate fixed to the L bracket on the door.
3. Fingerprint, card or face terminal controls the lock.
4. Exit button inside for release.
5. Backup power supply to keep the system running during outages.

Installation tips

• Check the door opening direction and frame width before ordering.
• Fix with strong screws into solid material.
• Align the armature fully with the lock face for maximum holding force.

Buy from QASWATEC

QASWATEC supplies ZKTeco access control products, EM locks, brackets and exit buttons. Visit our Elephant Road, Dhaka showroom or order online for delivery across Bangladesh.
