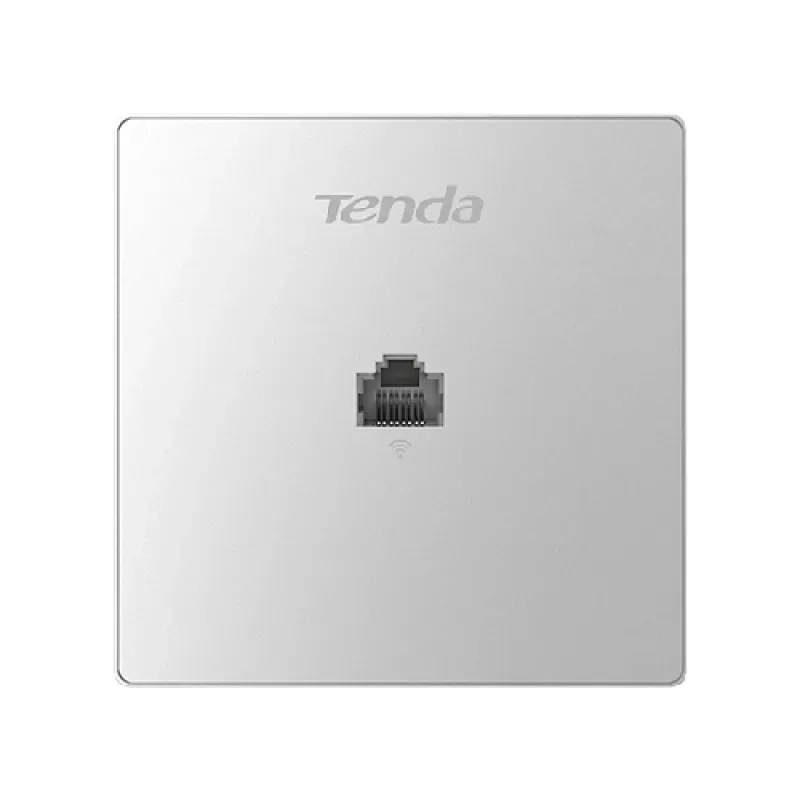

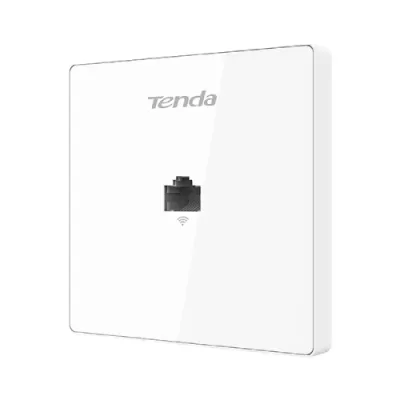

Tenda W12 AC1200 Dual Band Gigabit In-Wall Access Point, PoE, 50 Users

Tenda W12 AC1200 Dual Band In-Wall Access Point

See the Tenda W12 access point price in BD on this page. The W12 gives each room fast dual-band Wi-Fi from a neat wall plate, making it a strong choice for hotels, offices, hostels, hospitals and apartment buildings where guests stream video and join video calls.

Dual-band AC1200 speed

• 2.4GHz at up to 300Mbps for range and older devices
• 5GHz at up to 867Mbps for fast streaming and downloads
• Four 4dBi antennas for strong in-room coverage
• Supports up to 50 connected users

Modern phones and laptops automatically use the faster 5GHz band when close, and fall back to 2.4GHz when further away.

Hidden in the wall

The W12 measures 86 x 86 x 32 mm and installs in a standard 86mm wall box, replacing a LAN socket. Cables stay hidden and the access point is protected from tampering, while a front LAN port still lets you plug in a TV, PC or IP phone.

Single-cable installation

Power and data arrive over one Ethernet cable from an 802.3af PoE switch, so no electrical socket is needed near the access point. Power draw is just 7.8W.

Designing a building network

Run Cat6 from each room to a PoE switch in the network rack, install a W12 in each room, and use one network name throughout. Pair it with a Tenda controller or managed router to configure all access points centrally and manage guest access.

Operating conditions

The W12 operates from -10°C to 45°C. In rooms without air conditioning, mount it away from direct sunlight.

W12 vs W6S

The W6S is a budget 2.4GHz model for light use. The W12 adds the 5GHz band and much higher speed, which makes a noticeable difference where many guests use video at the same time.
