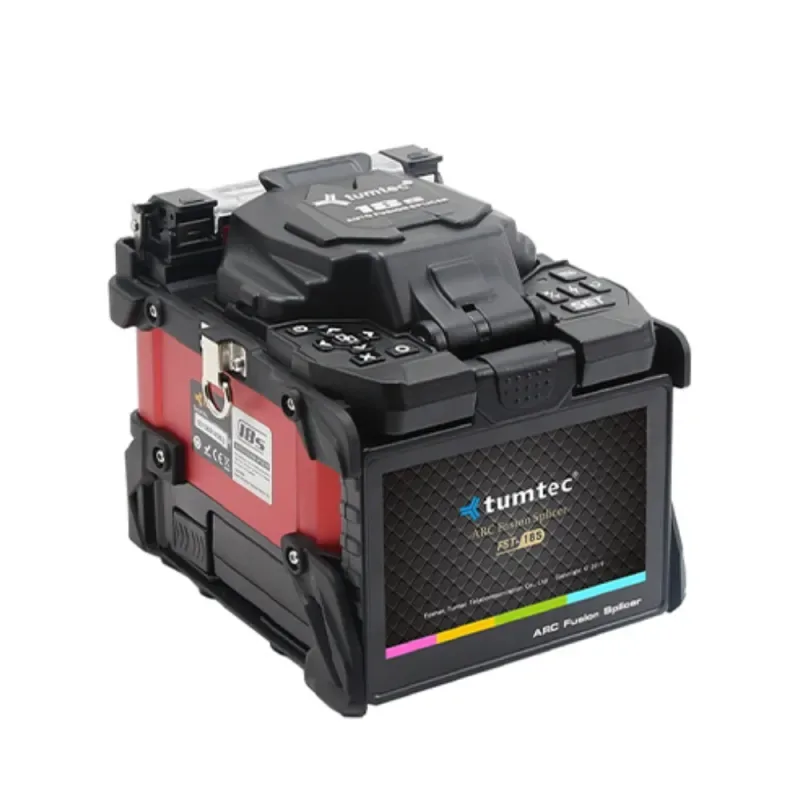

Tumtec FST-18S Optical Fibre Fusion Splicer, 5-inch Touchscreen, 6800mAh

Tumtec FST-18S Optical Fibre Fusion Splicer

Find the Tumtec FST-18S splicer machine price in BD on this page. The FST-18S is a step up from Tumtec's compact FTTx models, adding a larger 5-inch touchscreen and a bigger 6800mAh battery for long field days.

Key features

• 5-inch touchscreen for clear fibre views and quick menu access
• 6800mAh battery for extended work away from mains power
• Electrode life of about 5,500 discharges
• 5 preset heat-shrink sleeve heating modes
• Fibre coating diameter 0.125–1 mm, cleave length 5–16 mm
• Stores 10,000 splice records and 1,000 images

Who it is for

ISPs, FTTH contractors, cable TV operators and enterprise fibre installers who splice regularly and want a larger screen and longer battery life.

Image storage for reporting

Saved splice images help teams document work for clients and supervisors, and make it easier to review problem splices later.

Getting low-loss splices

1. Strip and clean the fibre with alcohol and lint-free wipes.
2. Cleave with a precision cleaver and avoid touching the end face.
3. Splice, check the loss estimate, and re-do any joint that reads high.
4. Protect each splice with a heat-shrink sleeve using the right heater mode.

Maintenance

Clean V-grooves and the camera lenses regularly, track electrode usage and replace electrodes before they cause high loss.

Choosing a Tumtec splicer

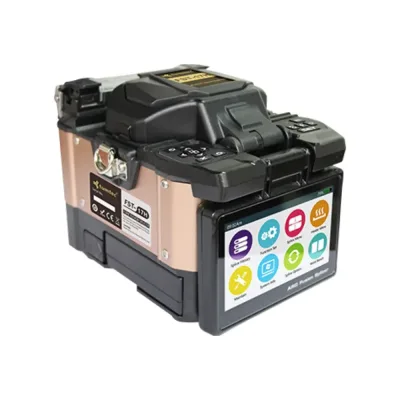

The FST-17H suits budget FTTx work, the FST-18S adds screen and battery capacity, and the V9 mini core-to-core model targets backbone links needing the lowest loss.

Buy from QASWATEC

QASWATEC supplies fibre splicers and tools for ISPs and installers. Visit our Elephant Road, Dhaka showroom or order online for delivery across Bangladesh.
