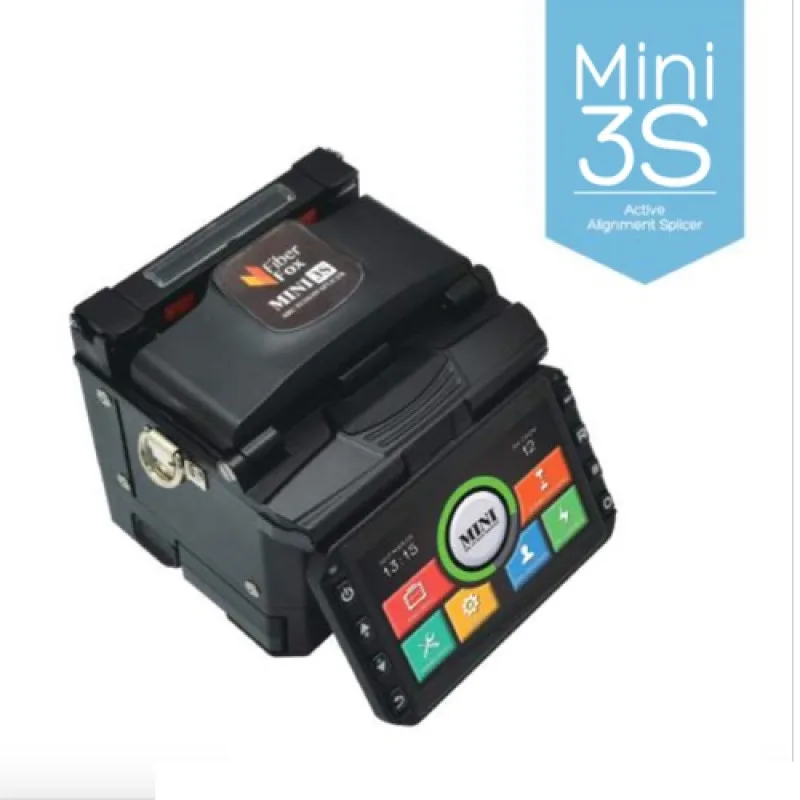

FiberFox Mini 3S Active V-Groove Cladding Alignment Fusion Splicer, 1.1kg

FiberFox Mini 3S Fusion Splicer

Check the FiberFox Mini 3S splicer price in BD on this page. FiberFox is a well-known fibre tool brand, and the Mini 3S is its compact splicer for field installers. At 1.1kg it is easy to carry up poles, into ceilings and between customer sites, yet it delivers low splice loss for access and enterprise networks.

Key features

• Active V-groove cladding alignment
• Average splice loss of 0.03dB
• Splice time of 8 seconds
• 139 splicing modes for different fibre types and conditions
• Lightweight 1.1kg body

Who it is for

FTTH and FTTx installation teams, ISP maintenance crews, building cabling contractors and enterprise IT teams that maintain their own fibre links.

Low loss in a small body

An average loss of 0.03dB is a strong figure for a cladding-alignment splicer. Lower loss per joint matters when a link passes through several splices, closures and connectors before it reaches the customer's ONU.

Splicing modes

Having many preset modes lets technicians match the arc to the fibre in use, such as standard single-mode, bend-insensitive drop fibre or multimode, without manual calibration on every job.

Field tips

1. Keep the work area clean and shielded from wind and dust.
2. Use a precision cleaver and fresh alcohol wipes.
3. Check the loss estimate on every joint and re-splice when it is high.
4. Clean V-grooves and replace electrodes on schedule.

Buy from QASWATEC

QASWATEC supplies fibre splicers and installation tools for ISPs and contractors. Visit our Elephant Road, Dhaka showroom or order online for delivery across Bangladesh.
