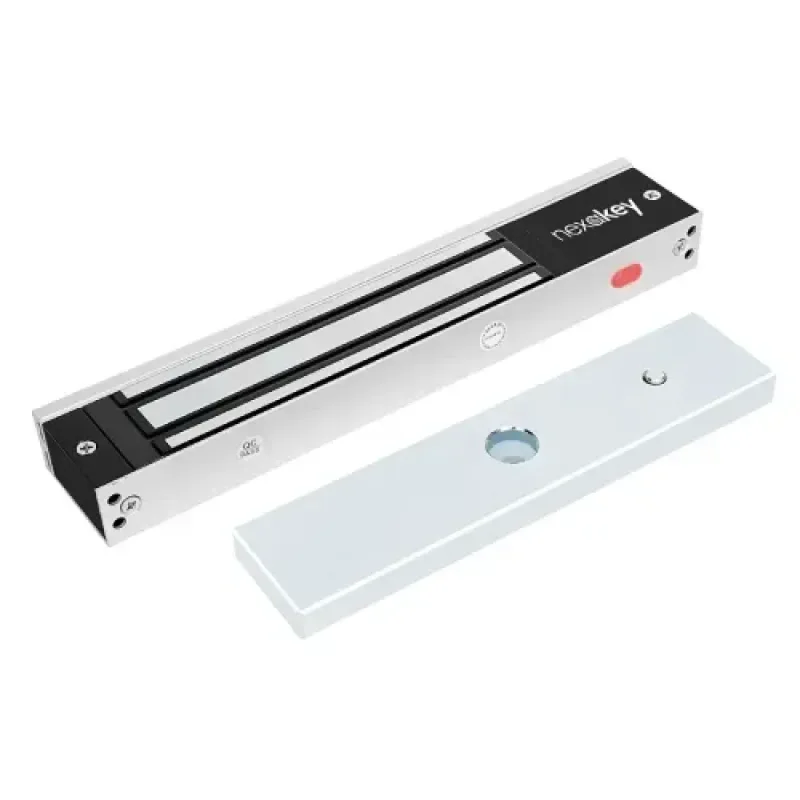

Nexakey NX-280AS Single Door Electromagnetic Lock, 280kg Holding Force, LED

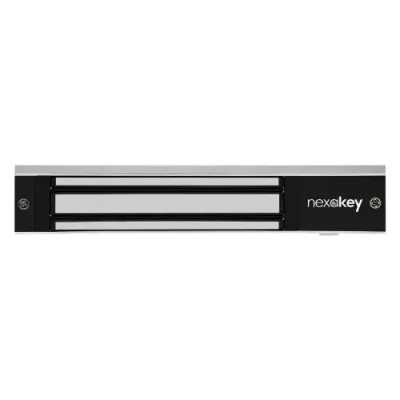

Nexakey NX-280AS Single Door Magnetic Lock

See the Nexakey NX-280AS magnetic lock price in BD on this page. Electromagnetic locks are the standard locking device in access control systems. When powered, the lock holds the door shut with a strong magnetic force; when the access terminal or exit button cuts power, the door releases instantly.

Key features

• 280kg (600lbs) holding force
• 12V operation, 0.43A working current
• LED indicators show the door status
• Works with wooden, glass, metal and fireproof doors

How it works in a system

1. Lock body fixed to the door frame, armature plate on the door.
2. Fingerprint, card or face terminal controls the lock's power.
3. An exit button inside lets people leave.
4. A 12V access control power supply, ideally with battery backup, powers the lock.

Fail-safe design

EM locks release when power is removed. This helps people leave quickly during emergencies, which is why EM locks are widely accepted for office and building doors. Plan a backup power supply so doors stay locked during load-shedding.

Mounting accessories

For frameless glass doors use a U bracket, and for inward-opening doors use a Z and L bracket set, such as the ZKTeco DM-280U or DM-280ZL.

Where to use it

Office entrances, server rooms, labs, apartment main doors, school gates and stores.

Buy from QASWATEC

QASWATEC supplies Nexakey and ZKTeco access control products, locks, brackets and exit buttons. Visit our Elephant Road, Dhaka showroom or order online for delivery across Bangladesh.
