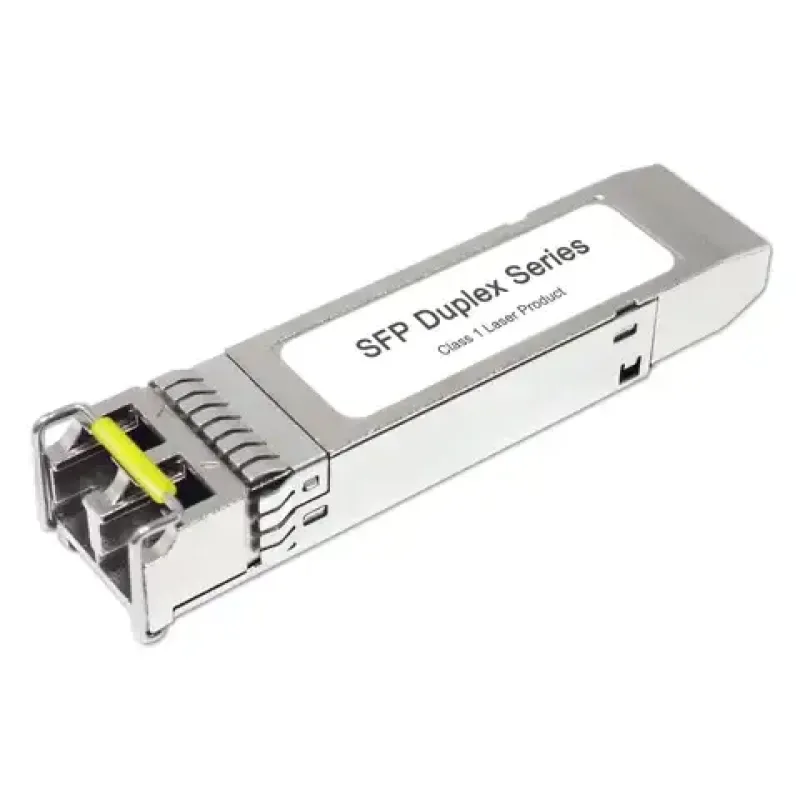

Ficer FSFP-C7-S13-20D Single-Mode SFP Transceiver, 1310nm, Duplex LC, 20km

Ficer FSFP-C7-S13-20D Single-Mode SFP Transceiver

The Ficer FSFP-C7-S13-20D SFP price in BD is shown on this page. This single-mode SFP module carries network traffic over fibre for up to 20 kilometres, making it a common building block for ISP backbones, links between office buildings and connections between distant switches.

Key specifications

• Single-mode fibre, up to 20km
• 1310nm Fabry-Perot (FP) laser transmitter
• Duplex LC connector (separate transmit and receive fibres)
• Single +3.3V power supply from the host port

When to use single-mode

Single-mode fibre is designed for long distances with very low loss. Choose this module when the link is longer than a few hundred metres, such as between buildings across a road, from an ISP POP to a distribution box, or between campus blocks. For short runs within a building on multi-mode fibre, a multi-mode module is more economical.

Duplex vs BiDi

This is a duplex module that uses two fibres, one in each direction. Use the same model at both ends of the link, with an LC-LC single-mode duplex patch cord at each end. If you only have a single fibre available, choose a BiDi (WDM) pair such as the TP-Link SM321B instead.

Compatibility

The module fits standard SFP ports on switches, routers and media converters. Some brands only accept coded optics, so share your switch model with our team to confirm.

Handling tips

Keep dust caps on until you connect, clean LC connectors before use, and never look directly into the port or fibre end when the link is active.

Buy from QASWATEC

QASWATEC supplies genuine Ficer optical modules with an invoice, as well as patch cords and media converters. Delivery across Bangladesh.
