Save ৳2,000

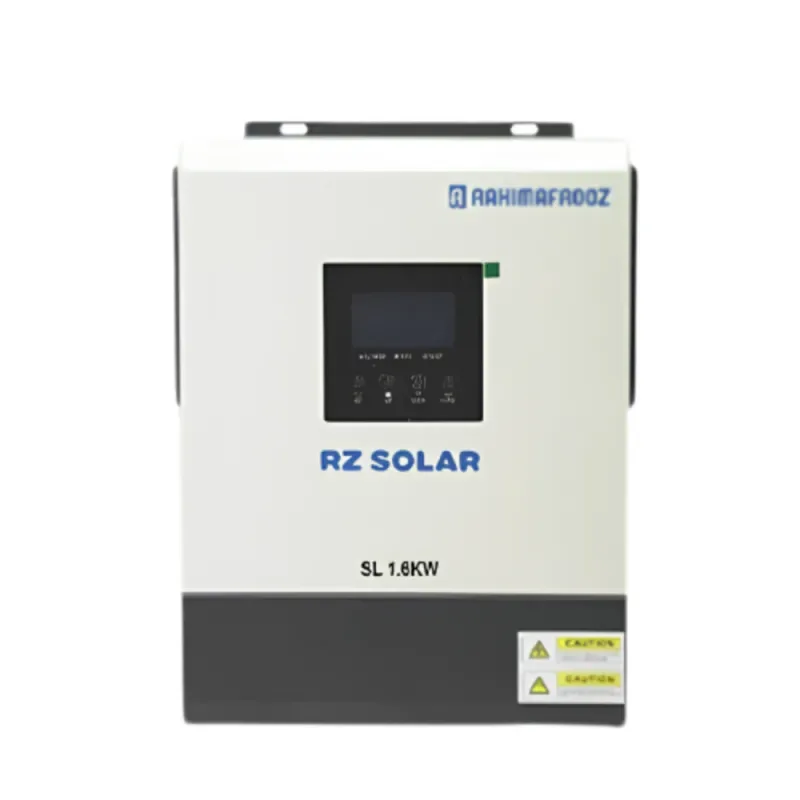

Rahimafrooz RZ Solar SL 1.6kW/12V Hybrid Solar Inverter, 2000W PV, MPPT, LCD

Write the first reviewModel SL 1.6KW/12VSKU RAHIMA-SL16KW12V

৳30,000৳32,0006% off

EMI from ৳2,500/month on 12 months with partner bank cards

In stock — ready to ship

Key features

Model: SL 1.6KW/12V
Output: 1600W, 220/230/240V ±5%, surge 3200W (5 s)
Solar: Up to 2000W, MPPT 30–450V, 500V max Voc
Charging: 80A AC, 100A solar + AC
Battery: 12V; lead-acid, SMF, Li-ion or user defined
Transfer Time: 10 ms (UPS mode)
Display: 2.5-inch LCD

DeliveryAll over Bangladesh · charge shown at checkout
1 year warrantyOfficial, claim online
Store pickupElephant Road, Dhaka

Specification

Output

Rated Power: 1600W
Surge Power: 3200W for 5 seconds
Output Voltage: 220/230/240V AC ±5%
Transfer Time: 10 ms (UPS mode), 20 ms (appliance mode)

Input

AC Input Range: 90–280V AC (cut-off)

Solar

Max Solar Panel Capacity: 2000W
MPPT Range: 30–450V DC
Max Input Voltage (Voc): 500V DC

Charging

AC Charging Current: 80A
Total Charging Current (Solar + AC): 100A

Battery

Battery Voltage: 12V
Supported Batteries: Lead-acid, SMF, Li-ion, user defined

Features

Display: 2.5-inch LCD
Noise Level: Below 60dB

Warranty

Manufacturer Warranty: 2 years

Description

Rahimafrooz RZ Solar SL 1.6kW/12V Inverter

The Rahimafrooz RZ Solar SL 1.6kW inverter price in BD is on this page. Rahimafrooz has decades of experience in batteries and solar in Bangladesh, and the RZ Solar SL range is its hybrid inverter line for homes moving to solar power.

Built around a 12V battery

The SL 1.6kW/12V runs from a single 12V battery bank, so it slots into homes that already use a large IPS battery. It supports lead-acid, sealed maintenance-free (SMF), lithium-ion and user-defined battery profiles.

Solar input with MPPT

Solar panel capacity up to 2000W
MPPT tracking range of 30–450V DC
Maximum input voltage (Voc) of 500V DC

The MPPT charger pulls the most energy out of your panels throughout the day, and combined solar plus grid charging can reach 100A for quick battery top-ups. Grid-only charging runs at up to 80A.

Output and backup

The inverter delivers 1600W at 220, 230 or 240V ±5%, with a 3200W surge for five seconds to start motors and compressors. In UPS mode it switches to battery in 10 ms, quick enough for computers and routers; appliance mode switches in 20 ms.

Wide grid tolerance

It accepts mains from 90V up to 280V before cutting over to battery, so it keeps charging during heavy evening voltage drops that would stop a basic IPS.

Easy to read

A 2.5-inch LCD shows solar input, battery state, load and mode. Noise stays below 60dB.

Planning your system

For a typical home, pair the SL 1.6kW with three or four modern 550–620W panels and a 12V 200Ah battery, depending on your load. Always use a qualified installer for wiring, breakers and earthing.

Buy from QASWATEC

QASWATEC sells genuine Rahimafrooz solar inverters with a 2-year warranty and an invoice. Talk to our team on Elephant Road, Dhaka, or order online for delivery across Bangladesh.

Questions about this product

How many solar panels can the Rahimafrooz RZ Solar SL 1.6kW take?

The Rahimafrooz RZ Solar SL 1.6kW/12V takes up to 2000W of solar panels, with MPPT tracking from 30 to 450V and a 500V maximum Voc.

What batteries work with the Rahimafrooz SL 1.6kW/12V?

It works with 12V lead-acid, SMF, lithium-ion and user-defined batteries.

What is the surge power of the Rahimafrooz SL 1.6kW inverter?

The Rahimafrooz RZ Solar SL 1.6kW/12V gives a 3200W surge for 5 seconds.

How fast does the Rahimafrooz SL 1.6kW switch to battery?

It switches in 10 ms in UPS mode and 20 ms in appliance mode.

Another question? Ask our team — we reply within one working day.
