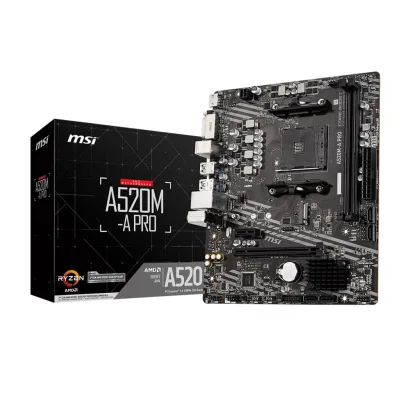

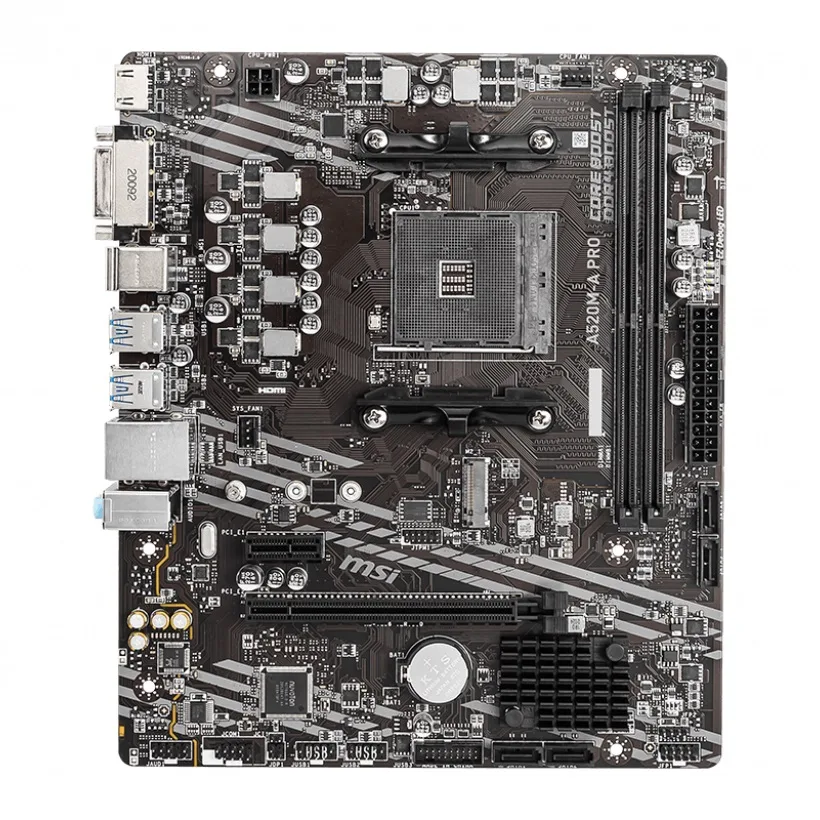

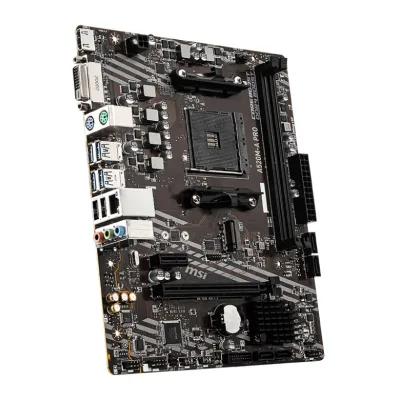

MSI A520M-A Pro AMD AM4 Micro-ATX Motherboard DDR4 HDMI M.2

Write the first reviewModel A520M-A PROSKU MSI-A520MAPRO

৳7,800৳8,2005% off

In stock — ready to ship

Key features

Socket: AMD AM4 (Ryzen 3000 / 4000G / 5000)
Chipset: AMD A520
Memory: 2x DDR4, up to 64GB, 4600MHz (OC)
Storage: 1x M.2 PCIe 3.0 / SATA, 4x SATA
Video Out: HDMI 2.1, DVI-D
Form Factor: Micro-ATX, Realtek Gigabit LAN

DeliveryAll over Bangladesh · charge shown at checkout
3 years warrantyOfficial, claim online
Store pickupElephant Road, Dhaka

Specification

General

Socket: AMD AM4
Supported CPU: AMD Ryzen 5000, 4000 G-Series and 3rd Gen Ryzen
Chipset: AMD A520
Form Factor: Micro-ATX, 23.6 x 20 cm
TPM: TPM module connector

Memory

Slots: 2x DDR4 DIMM, dual channel
Speed: Up to 3200MHz JEDEC, up to 4600MHz OC
Maximum: 64GB

Storage

M.2: 1x M.2 (M-key), PCIe 3.0 / SATA, 2242/2260/2280
SATA: 4x SATA 6Gb/s

Graphics

Expansion: 1x PCIe x16, 1x PCIe 3.0 x1

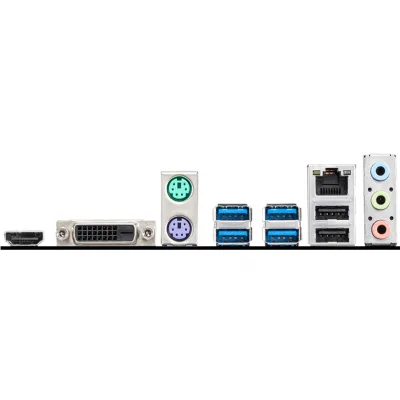

Ports

Video Output: 1x HDMI 2.1 (4096x2160 @60Hz), 1x DVI-D
USB: 2x USB 3.2 Gen 1 via internal header, 6x USB 2.0 (2 rear)

Connectivity

LAN: Realtek RTL8111H Gigabit

Audio

Audio: Realtek ALC892, 7.1-channel HD audio

Power

Power Connectors: 24-pin ATX, 4-pin ATX 12V

Description

MSI A520M-A Pro AMD AM4 Micro-ATX Motherboard

The MSI A520M-A Pro is an entry-level AM4 board, and the MSI A520M-A Pro price in BD makes it one of the lowest-cost ways to build a modern AMD Ryzen PC. It uses the AMD A520 chipset and supports AMD Ryzen 5000, 4000 G-Series and 3rd Gen Ryzen processors. The Micro-ATX board has two DDR4 slots for up to 64GB, one M.2 slot, four SATA ports, HDMI 2.1 and Realtek Gigabit LAN.

Key Features

AMD AM4 socket for Ryzen 3000, 4000G and 5000 processors
AMD A520 chipset
Two DDR4 slots, dual channel, up to 64GB and 4600MHz (OC)
One M.2 slot supporting PCIe 3.0 and SATA SSDs
Four SATA 6Gb/s ports
HDMI 2.1 (4K 60Hz) and DVI-D video outputs
Realtek Gigabit LAN and 7.1-channel audio

Good for office and APU builds

Pair the MSI A520M-A Pro with a Ryzen 5 5600G or Ryzen 7 5700G to build a PC that needs no separate graphics card. The HDMI 2.1 port drives a 4K monitor at 60Hz and the DVI-D port runs a second Full HD screen. For gaming, the PCIe x16 slot accepts a dedicated graphics card. The board's M.2 slot gives fast NVMe boot speeds, and four SATA ports leave room for hard drives and SSDs.

Memory and expansion

Two DDR4 slots run in dual channel for better Ryzen performance; memory up to 3200MHz runs at JEDEC speed, and faster kits run with overclocking profiles. A PCIe 3.0 x1 slot takes a Wi-Fi card or capture card. Internal headers support front USB 3.2 Gen 1 ports, and a TPM connector supports Windows 11 security needs.

Note on CPU support

The A520 chipset does not support CPU overclocking, so it suits standard Ryzen chips well. Ryzen 5000 processors may need a recent BIOS; ask our team to check the BIOS when you buy a board and CPU together.

Who should buy it

Choose the MSI A520M-A Pro for budget Ryzen builds, office PCs and home computers where low cost and reliability matter more than overclocking.

Buy MSI A520M-A Pro from QASWATEC

Available at QASWATEC, Elephant Road, Dhaka, with delivery across Bangladesh.

Questions about this product

Which processors does the MSI A520M-A Pro support?

The MSI A520M-A Pro supports AMD Ryzen 5000 Series, Ryzen 4000 G-Series and 3rd Gen Ryzen processors on socket AM4.

Does the MSI A520M-A Pro support an NVMe SSD?

Yes. The MSI A520M-A Pro has one M.2 slot that supports PCIe 3.0 NVMe and SATA SSDs.

How much RAM does the MSI A520M-A Pro support?

The MSI A520M-A Pro has two DDR4 slots and supports up to 64GB, with speeds up to 4600MHz using overclocking.

Which display outputs does the MSI A520M-A Pro have?

The MSI A520M-A Pro has one HDMI 2.1 port (up to 4096x2160 at 60Hz) and one DVI-D port for Ryzen G-series processors.
