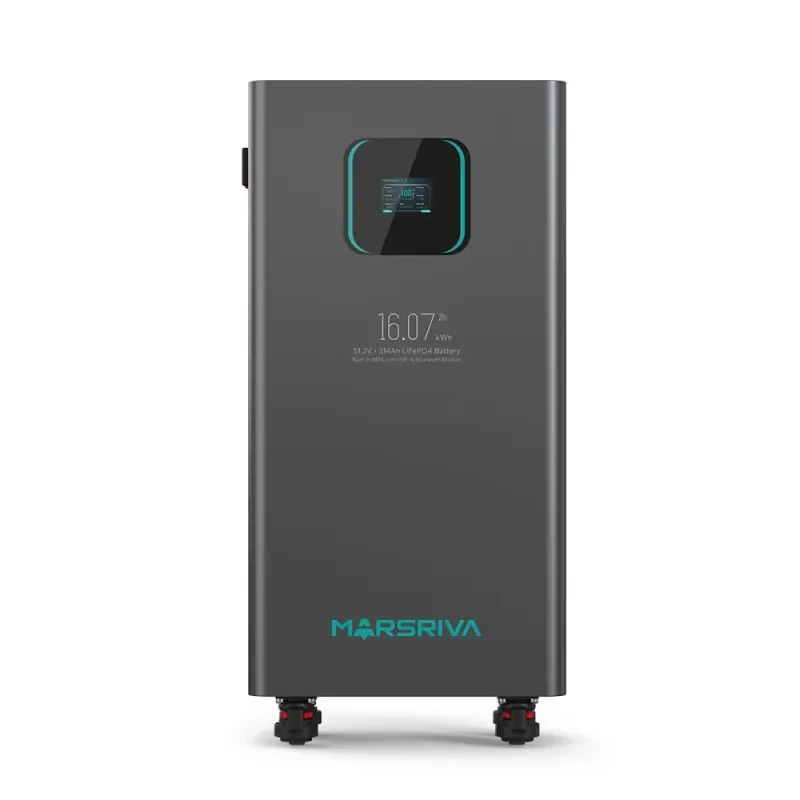

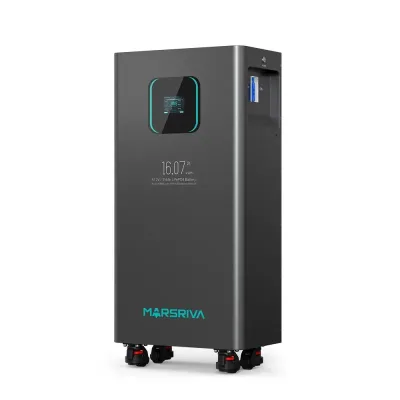

Marsriva MR-LFP48-314-FSD 51.2V 314Ah LiFePO4 Solar Battery, 16.07kWh, Touch Screen

Write the first reviewModel MR-LFP48-314-FSDSKU MARSRI-MRLFP48314FSD

৳2,65,000

EMI from ৳22,090/month on 12 months with partner bank cards

In stock — ready to ship

Key features

Model: MR-LFP48-314-FSD
Chemistry: LiFePO4, Grade A cells
Capacity: 314Ah, 16.07kWh at 51.2V
Cycle Life: 8000+ (to 70% at 25°C)
Nominal Charge / Discharge: 160A / 200A; max 210A
Built-in BMS, 3.5-inch touch screen, fire extinguisher
Weight: 125 kg

DeliveryAll over Bangladesh · charge shown at checkout
1 year warrantyOfficial, claim online
Store pickupElephant Road, Dhaka

Specification

Battery

Chemistry: LiFePO4 (Grade A cells)
Nominal Voltage: 51.2V
Rated Capacity: 314Ah
Nominal Energy: 16.07kWh
Cycle Life: 8000 or more (to 70% end of life at 25°C)
Self Discharge: 200µA or less

Current

Nominal Charge Current: 160A
Nominal Discharge Current: 200A
Max Charge / Discharge Current: 210A / 210A

Features

BMS: Built-in
Display: 3.5-inch touch screen
Safety: Built-in fire extinguisher
Parallel Connection: Up to 15 units

Environment

Charge Temperature: 0°C to 55°C
Discharge Temperature: -20°C to 55°C

Physical

Installation: Floor standing or wall mount
Enclosure: SPCC cold-rolled steel
Dimensions: 428 x 238 x 825 mm (900 mm with base)
Weight: 125 kg

Warranty

Manufacturer Warranty: 5 years

Description

Marsriva MR-LFP48-314-FSD 51.2V 314Ah Lithium Solar Battery

Find the Marsriva 51.2V 314Ah lithium battery price in BD on this page. The MR-LFP48-314-FSD is Marsriva's large-capacity energy store: 16.07kWh of LiFePO4 storage in a single steel cabinet, rated for more than 8,000 cycles, for homes, offices, clinics and shops running serious solar systems.

16kWh in one unit

With 314Ah at 51.2V, one battery holds 16.07kWh, enough for a large home to run lights, fans, refrigerator, TV and even an inverter AC for several hours overnight, depending on the load. Up to 15 units can be paralleled for bigger systems.

Built for decades of cycling

Grade A LiFePO4 cells
8,000 or more cycles to 70% end-of-life at 25°C
Very low self-discharge of 200µA or less

That is more than 20 years of one cycle a day, far beyond what lead-acid can offer.

Strong charge and discharge

Nominal charge current is 160A and nominal discharge 200A, with peaks to 210A. That supports fast solar charging and high-power inverters on a 48V bus.

Safety and monitoring

A built-in BMS guards against over-charge, over-discharge, over-current and temperature extremes, and a fire extinguisher is integrated into the SPCC cold-rolled steel cabinet. A 3.5-inch touch screen shows state of charge and alarms.

Installation

It can stand on the floor or mount on a strong wall. It measures 428 x 238 x 825 mm (900 mm with base) and weighs 125 kg, so plan the position and handling carefully. Charge between 0°C and 55°C; discharge works from -20°C to 55°C.

Inverter compatibility

Pair it with a 48V hybrid inverter set to a lithium profile, and connect BMS communication where supported for the most accurate charging. Our team can recommend matching Marsriva and other inverters.

Buy from QASWATEC

QASWATEC sells genuine Marsriva lithium batteries with a 5-year warranty and an invoice. Visit our Elephant Road, Dhaka showroom for system design help, and we deliver across Bangladesh.

Questions about this product

How much energy does the Marsriva MR-LFP48-314-FSD store?

The Marsriva MR-LFP48-314-FSD stores 16.07kWh at 51.2V and 314Ah.

How many cycles does the Marsriva 314Ah battery last?

The Marsriva MR-LFP48-314-FSD is rated for 8,000 or more cycles to 70% end of life at 25°C.

What are the charge and discharge currents of the Marsriva MR-LFP48-314-FSD?

Nominal charge current is 160A, nominal discharge 200A, and maximum 210A for both.

How heavy is the Marsriva MR-LFP48-314-FSD?

The Marsriva MR-LFP48-314-FSD weighs 125 kg and measures 428 x 238 x 825 mm.

Another question? Ask our team — we reply within one working day.
