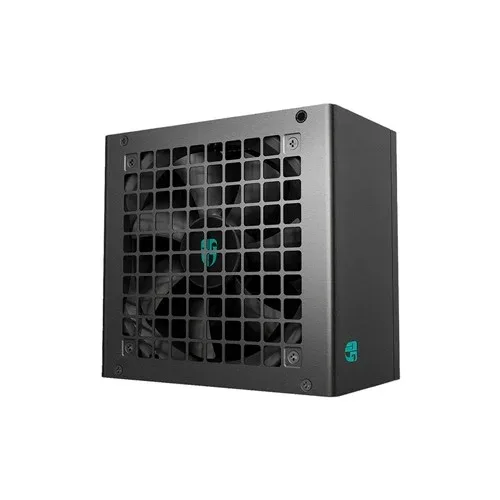

DeepCool PF600X 600W 80 Plus Bronze Non-Modular ATX Power Supply

DeepCool PF600X 600W 80 Plus Bronze Non-Modular Power Supply

The DeepCool PF600X is a 600W 80 Plus Bronze power supply for home, office and entry gaming PCs, and the DeepCool PF600X price in BD makes it an affordable step up from generic units. It follows the ATX12V V2.52 standard, uses an Active PFC plus DC-to-DC design, reaches 88% or higher efficiency at 50% load and cools itself with a 120mm hydro bearing fan.

Key Features

• 600W total power, ATX12V V2.52
• 80 PLUS Bronze, 88% or higher efficiency at typical (50%) load
• Active PFC with DC-to-DC topology
• 120mm hydro bearing fan
• OPP, OVP, SCP, OTP, OCP, UVP, SIP and NLO protections
• Non-modular design

Stable DC-to-DC power

In a DC-to-DC power supply, the 3.3V and 5V outputs are produced from the main 12V output, so they stay steady when the graphics card or processor suddenly draws more power. This gives cleaner power to the motherboard, SSD and other parts than older group-regulated designs.

Connectors

The PF600X has one 24 (20+4) pin motherboard connector, two 4+4 pin CPU connectors, one 6+2 pin PCIe connector, three SATA connectors and one 4-pin peripheral connector. The single PCIe connector suits graphics cards that need one 8-pin plug, such as many RTX 3050, RTX 4060 and RTX 5060 models.

Protection and reliability

Eight protection circuits guard against over-power, over-voltage, short circuit, over-temperature, over-current, under-voltage, surge and inrush, and no-load operation. The unit holds up for 16 ms or more at 80% load, which helps it ride through very short power dips.

Quiet hydro bearing fan

The 120mm hydro bearing fan runs quietly at everyday loads and is designed for a long life, which suits PCs that are on for many hours a day.

What it can power

600W is enough for a mainstream processor and a mid-range graphics card with one 8-pin connector. Check your graphics card maker's recommended PSU wattage and connector count before buying, and use a UPS to protect your PC from load-shedding and voltage swings.

Who should buy it

Choose the DeepCool PF600X for a budget gaming PC or a reliable office desktop that needs a little more headroom than a 500W or 550W unit.

Buy DeepCool PF600X from QASWATEC

Available at QASWATEC, Elephant Road, Dhaka, with delivery across Bangladesh.
